| Part Number |
Description |
Qty In Complete System |

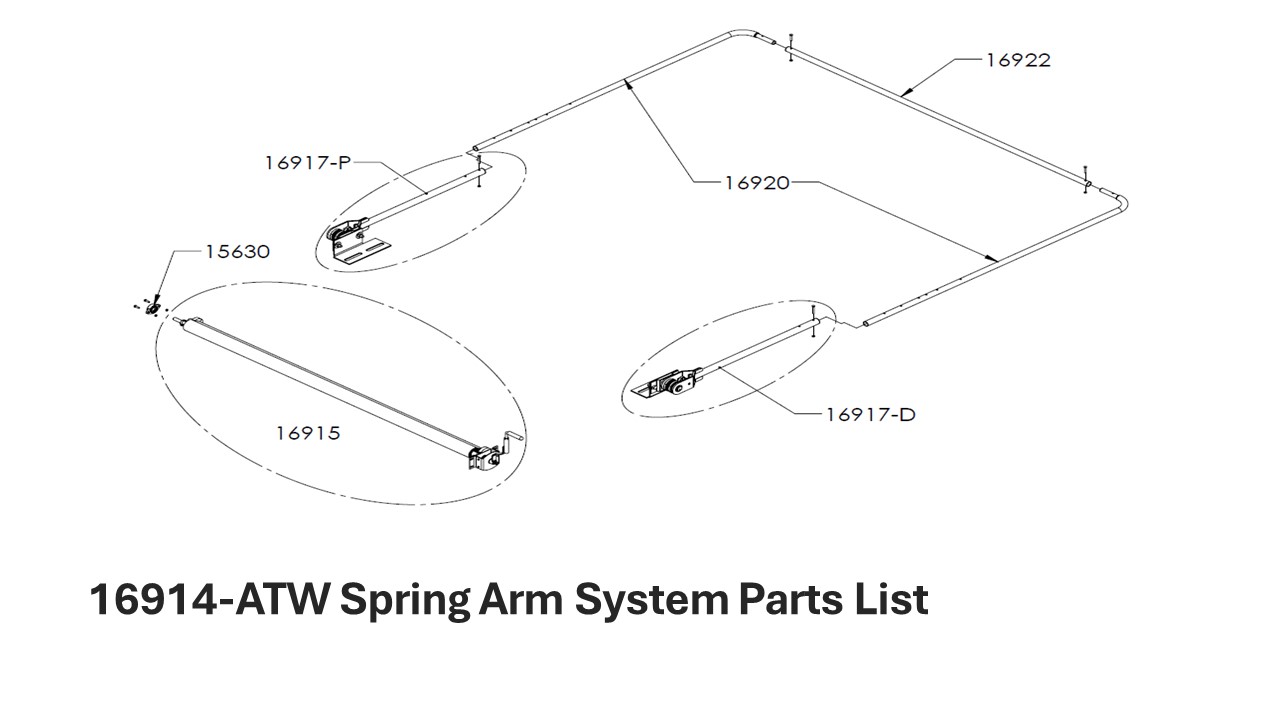

| SB-16914-ATW |
Small Box for ATW Cab Level Crank 2 Spring Steel System |
1 |
| **Following part numbers come in assembly above. |
| 15630 |
3/4" Flange Bearing Cast Iron |
1 |
| 16918 |

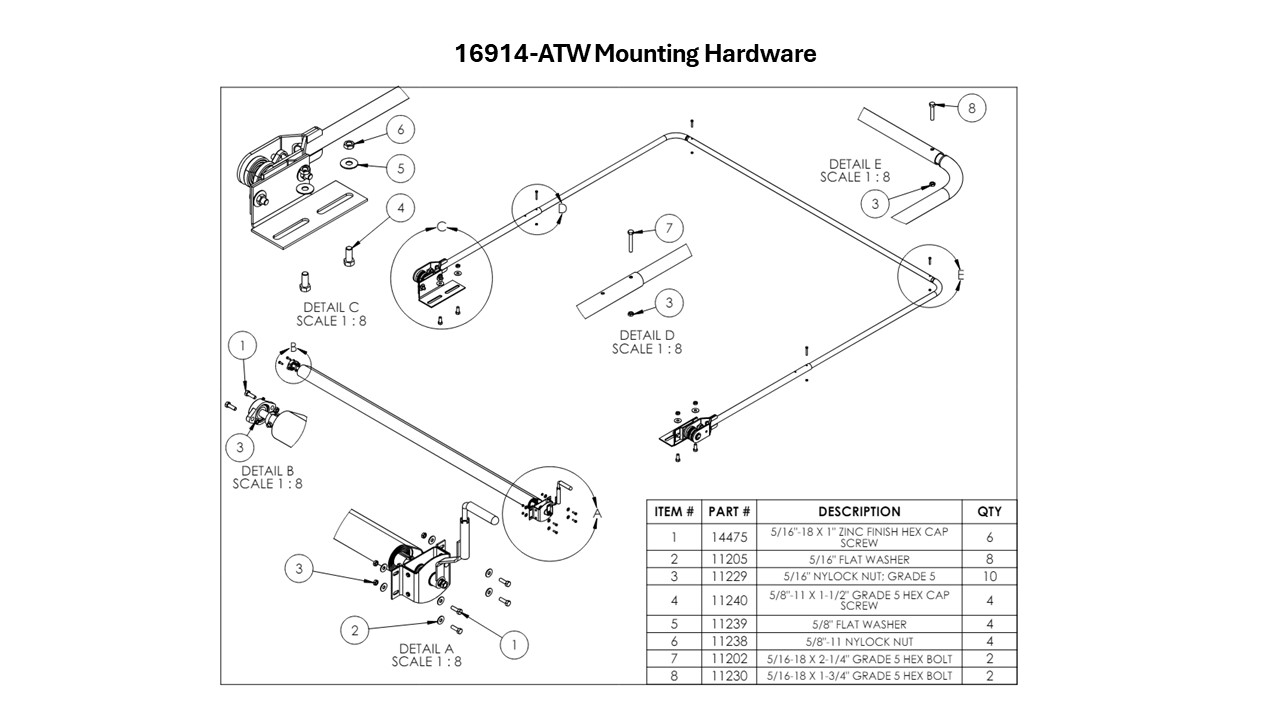

Mounting Hardware Kit, Includes All Bolts, Nuts, & Washers |
1 |
|
|
|
| 16917-P |

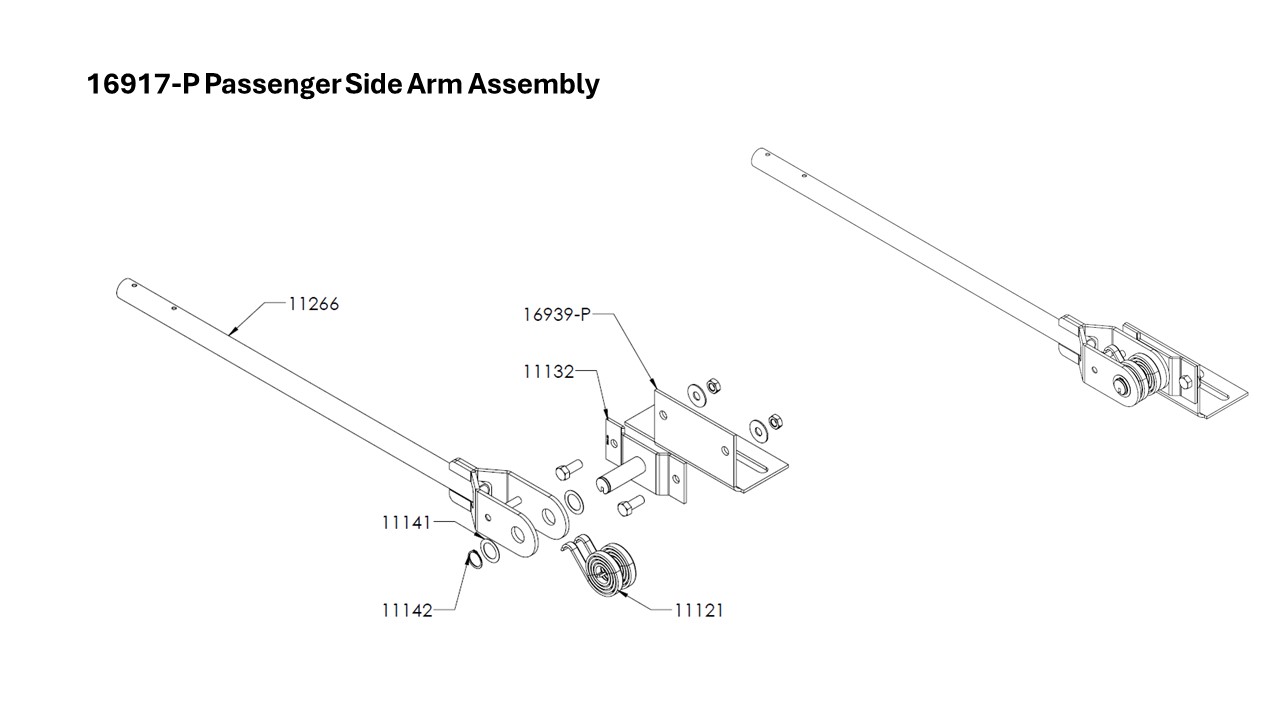

Cab Level Crank 2 Spring Lower Arm Assembly - Passenger Side |
1 |
| 16917-D |

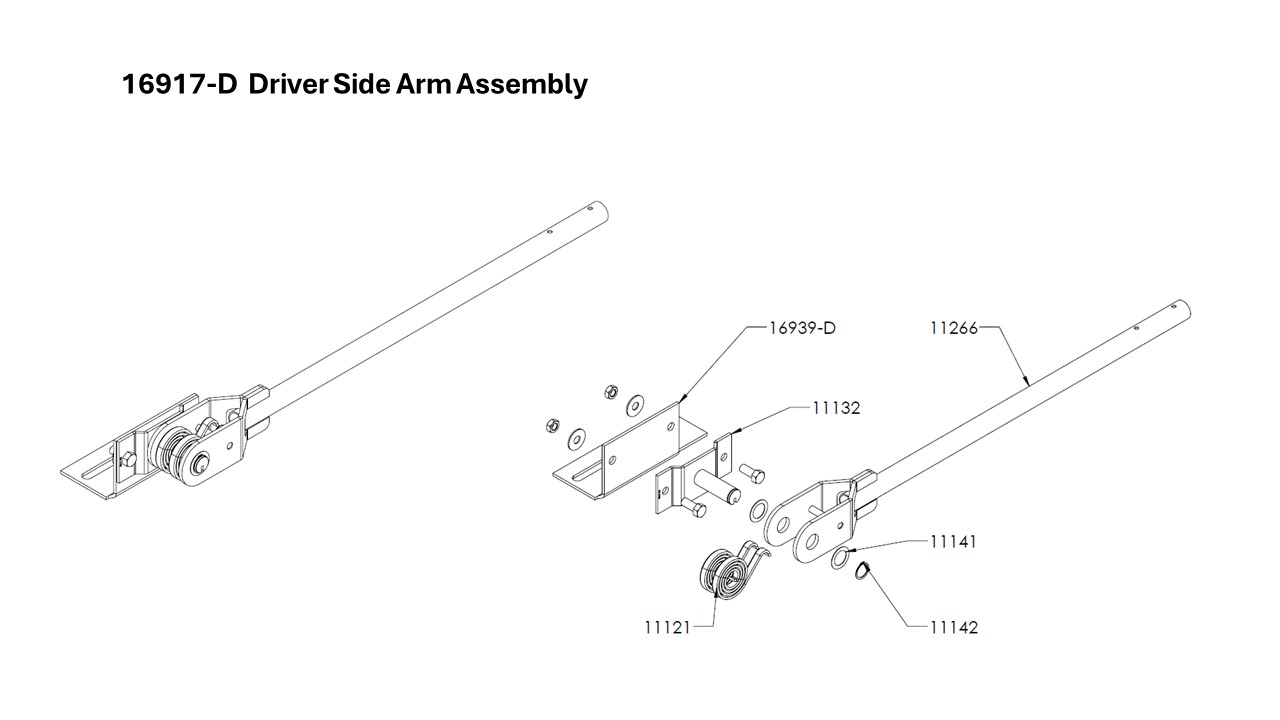

Cab Level Crank 2 Spring Lower Arm Assembly - Driver Side |
1 |
| **Following part numbers come in each arm assembly above. |
| 16921 |
5" x 5" Angle Mounting Bracket for Steel Lower Arm |
2 |
| 11132 |
Pivot Pin |
2 |
| 11121 |
Spiral Torsion Spring |
4 |
| 11266 |
Lower Steel Arm, 36" Long |
2 |
| 11141 |
Stainless Steel Bushing for Pivot Pin |
4 |
| 11142 |
External Retaining Ring for Pivot Pin |
2 |
|
|
|
| 16915 |

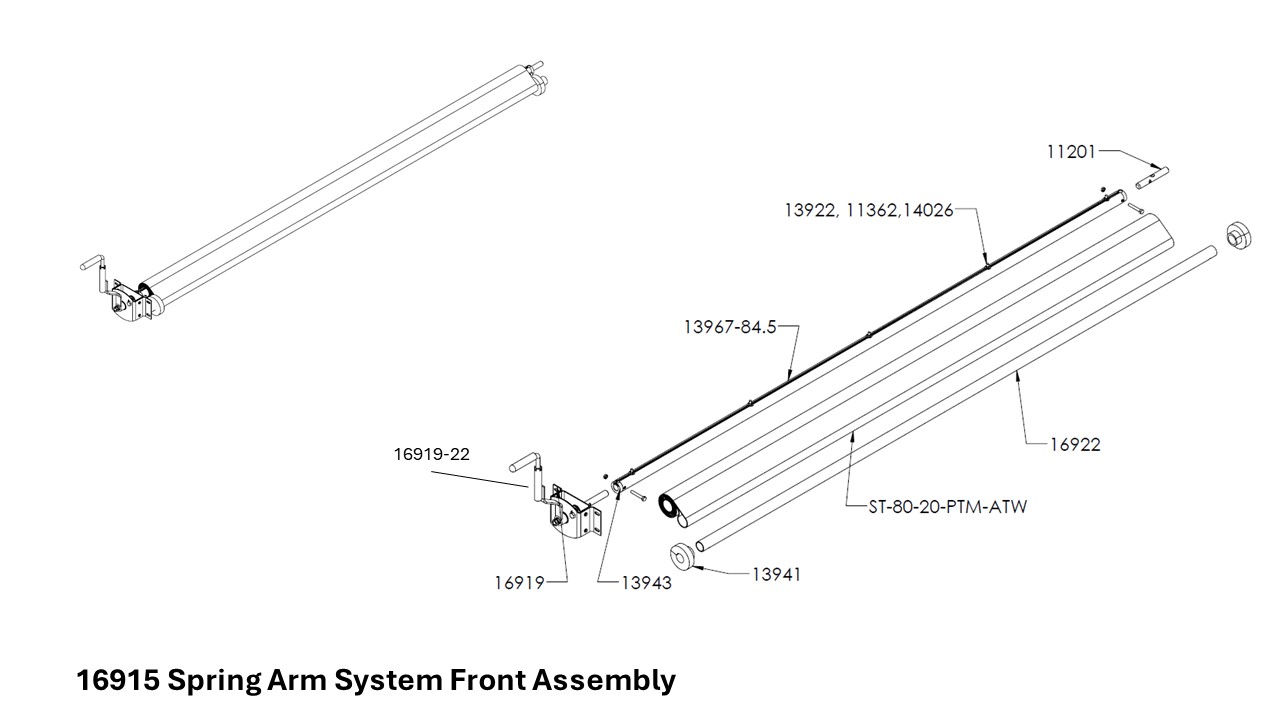

Cab Level Crank Complete Front Assembly (ASSEMBLED) |
1 |
| **Following part numbers come in assembly above. |
| 11201 |
Spool Shaft 5" Long |
1 |
| 14072 |
Tarp Mounting Hardware Kit (INCLUDES 5 OF 13922,11362,14026) |
|
| 13922 |
Tarp Mounting Carriage Bolt |
5 |
| 11362 |
Tarp Mounting Carriage Bolt Nylon Nut 1/4-20" |
5 |
| 14026 |
Tarp Mounting Fender Washer 1/4" x 1" |
5 |
| 13967-84.5 |
Tarp Axle, Hollow 84.5" Long 1-1/2" Diameter |
1 |
| 16919 |
Cab Level Crank Box Assembly with 3" Offset |
1 |
| 13943 |
1 1/2" Plastic Tarp Axle Cap |
2 |
| 16937 |
Flexible Tarp Guide Kit (INCLUDES 2 OF 13941 & 13913) |
|
| 13941 |
Flexible Tarp Guide 1.315" (REQUIRES 1 OF 13913) |
2 |
| 13913 |
Tarp Guide Clamp (REQUIRES WITH 13941) |
2 |
| 16922 |
Steel Cross Tube Cut to 86 1/2" & Drilled on Both Ends |
1 |
| |
|
|
|
PARTS NOT IN KITS |
|
| 80-20-PTM-ATW |
80" Wide x 20' Long, Standard Pro-Tech Mesh Tarp W Side Belting |
1 |
| 16920 |
Steel Upper Arm for Cab Level Crank, 90° Bend 77.5" Long |
2 |
