Agriculture & Specialty Systems

Distinct Tarping Solutions for Road, Farm and Life

Agricultural Side Roll & Belt & Ratchet Systems

Genuine US Tarp Agricultural Tarp System provides the most water resistant, manual tarp systems in the industry. US Tarp has a variety of options to have you covered on the farm or on the job site. Please refer to the Ordering Forms on our Resource page and reach out to your Customer Service Representative.

Agricultural Side Roll

Up to 10′ AG10BV
11′ – 15′ AG15BV
16′ – 20′ AG20BV
20′ – 25′ AG25BV
26′ – 30′ AG30BV
31′ – 35′ AG35BV
36′ – 40′ AG40BV
41′ – 45′ AG45BV
46′ – 50′ AG50BV
51′ – 54′ AG54BV

Belt & Ratchet

10′ – 15′ PBR15
16′ – 20′ PBR20
20′ – 25′ PBR25
26′ – 30′ PBR30
31′ – 35′ PBR35
36′ – 40′ PBR40
41′ – 45′ PBR45
46′ – 50′ PBR50
51′ – 54′ PBR54

Side Roll System

  • Fits Applications from 10’ to 54’
  • Up to 102” Wide Body
  • 18oz Black Vinyl Tarp Standard
  • Pin-Less Crank Retainer Kit w/7” Offset
  • Extruded Aluminum Tarp Stops

PBR System

  • Fits Applications from 10’ to 54′
  • Up to 102” Wide Body
  • 18 oz Black Vinyl Tarp Standard
  • Heavy Duty Ratchet Strap Kits Included
  • Crank Retainer Kit
  • Quick Release Tarp Stops

Available Enhancements

  • FEC
    Fabric End Caps
  • 2RS
    2′ Ridge Strap Kit
  • ACS
    Aluminum Cast Tarp Stops
  • Flex97
    Flexible Bows 96″ Trailer
  • AEC
    Aluminum End Caps
  • 22BV
    22oz Black Vinyl Tarp Upgrade
  • AC6
    Aluminum Cast 6″ Tarp Stops
  • Flex102
    Flexible Bows 102″ Trailer

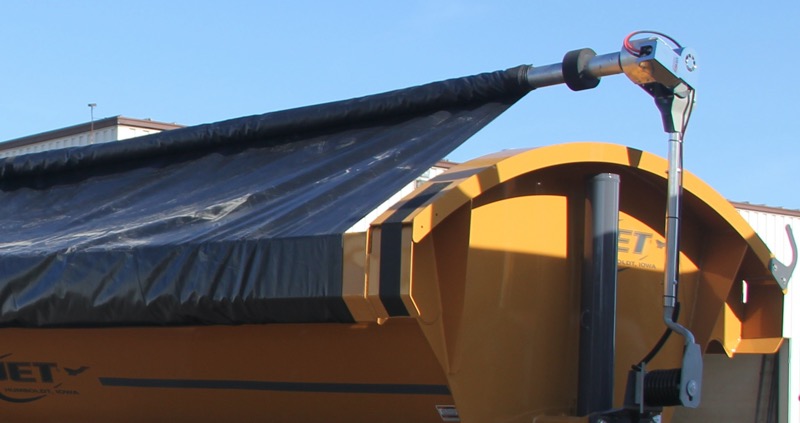

Side Dump Tarping System

Genuine US Tarp Side Dump systems are complete electric tarp systems solutions.  Offering custom mounting brackets and available in sizes covering applications from 20’ to 40’+. Please refer to the Ordering Forms on our Resource page and reach out to your Customer Service Representative.

Length
20′
22′
24;
26′
28′
30′
32′
34′
36′
38′
40′

Part #
SD20BV
SD22BV
SD24BV
SD26BV
SD28BV
SD30BV
SD32BV
SD34BV
SD36BV
SD38BV
SD40BV
Length
20′
22′
24;
26′
28′
30′
32′
34′
36′
38′
40′
Part #
SD20BM
SD22BM
SD24BM
SD26BM
SD28BM
SD30BM
SD32BM
SD34BM
SD36BM
SD38BM
SD40BM
  • Contact a sales rep for pricing on all other tarp materials.
  • Please use the side dump tarping system ordering form, when ordering systems or replacement tarps.
  • System requires brand specific mounting bracket that is not included. Please disclose trailer make/ model on the ordering form to ensure you will receive the correct brackets.

Available Enhancements

  • PH
    Powerhouse Motor Upgrade
  • Smithco
    Mounting Bracket Kit for Smithco Trailers
  • Circler
    Mounting Bracket Kit for Circle R Trailers
  • Jet
    Mounting Bracket Kit for Jet Trailers
  • 14993-VKIT or 14993-HKIT
    Complete Coiled Wiring Kit w/ Vertical or Horizontal Plugs
  • Smitcho-1
    Single Mounting Bracket for Smithco Trailers
  • Circler-1
    Single Mounting Bracket for Circle R Trailers
  • Jet-1
    Single Mounting Bracket for Jet Trailers

Cable Tarping Systems

Genuine US Tarp Cable Systems are available in manual or electric options. Along with the ability to customize bow sizing for the right fit and a variety of tarp materials for the job. Please refer to the Ordering Forms on our Resource page and reach out to your Customer Service Representative.

Length
16′
18′
20′
22′
24′
26′
28′
Part #
CAB16BV
CAB18BV
CAB20BV
CAB22BV
CAB24BV
CAB26BV
CAB28BV
Length
30′
32′
34′
36′
38′
40′
Part #
CAB30BV
CAB32BV
CAB34BV
CAB36BV
CAB38BV
CAB40BV
Length
16′
18′
20′
22′
24′
26′
28′
Part #
CAB16BM
CAB18BM
CAB20BM
CAB22BM
CAB24BM
CAB26BM
CAB28BM
Length
30′
32′
34′
36′
38′
40′
Part #
CAB30BM
CAB32BM
CAB34BM
CAB36BM
CAB38BM
CAB40BM
Length
16′
18′
20′
22′
24′
26′
28′
Part #
ECAB16BV
ECAB18BV
ECAB20BV
ECAB22BV
ECAB24BV
ECAB26BV
ECAB28BV
Length
30′
32′
34′
36′
38′
40′
Part #
ECAB30BV
ECAB32BV
ECAB34BV
ECAB36BV
ECAB38BV
ECAB40BV
Length
16′
18′
20′
22′
24′
26′
28′
Part #
ECAB16BM
ECAB18BM
ECAB20BM
ECAB22BM
ECAB24BM
ECAB26BM
ECAB28BM
Length
30′
32′
34′
36′
38′
40′
Part #
ECAB30BM
ECAB32BM
ECAB34BM
ECAB36BM
ECAB38BM
ECAB40BM
  • Please use the Cable Tarp System ordering form when ordering systems or replacement tarps.
  • Standard bow sizes are 98” with 12” rise and 104” with 12” rise, custom sizes and rises are available for an additional cost.
  • All kits are standard with front roller tube, pillow block bearings, 7” front pulleys, aircraft cable, anti-lift kits, tension pulleys, bows, and our standard cable bow end.
  • Electric Cable Systems less than 30’ will have a Direct Drive Dual Shaft Tarp Motor, any kit exceeding 30’ will have a Keyway Tarp Motor with Chain and Sprocket gear reduction.
  • Aluminum Front Mounting Assembly and Wind Deflectors are not included in systems. See your sales rep for details.

Available Enhancements

  • Polished Aluminum Wind Deflector
    Part # 14291 or Part # 14921-101 for 101” wide
  • Aluminum Front Mounting Bar
    Part # 14707 or Part # 15201 for 101” wide
  • Dual Conductor Plug Sets
    Vert # 11264 & Horizontal # 14566
  • Powerhouse Heavy Duty Tarp Motor Upgrade Add -PH to system part #
  • Set up for 104” Tarp bows
    Add -104 suffix to any part
  • Custom bow sizes
    Add -C to any part #
  • Square tarp bow end upgrade
    Add -SQ to any system part #
  • 90:1 Bulletproof Tarp Motor
    Part # 13957-KEYWAY REF # 24
  • Chain Crank Assembly
    Part # 11140 REF # 12
  • #40 Chain / Master Link – 12’
    Part # 11285 REF # N/A
  • 42 Tooth Sprocket – #40
    Part# 14675 REF # 13
side roll replacement parts
Side Roll Replacement Parts
Belt & Ratchet Replacement Parts
Belt & Ratchet Replacement Parts
Cable System Replacement Parts
Cable System Replacement Parts
