Recycling & Refuse Tarp Systems
Adaptable Roll Off Tarping Solutions
Waste Warrior™

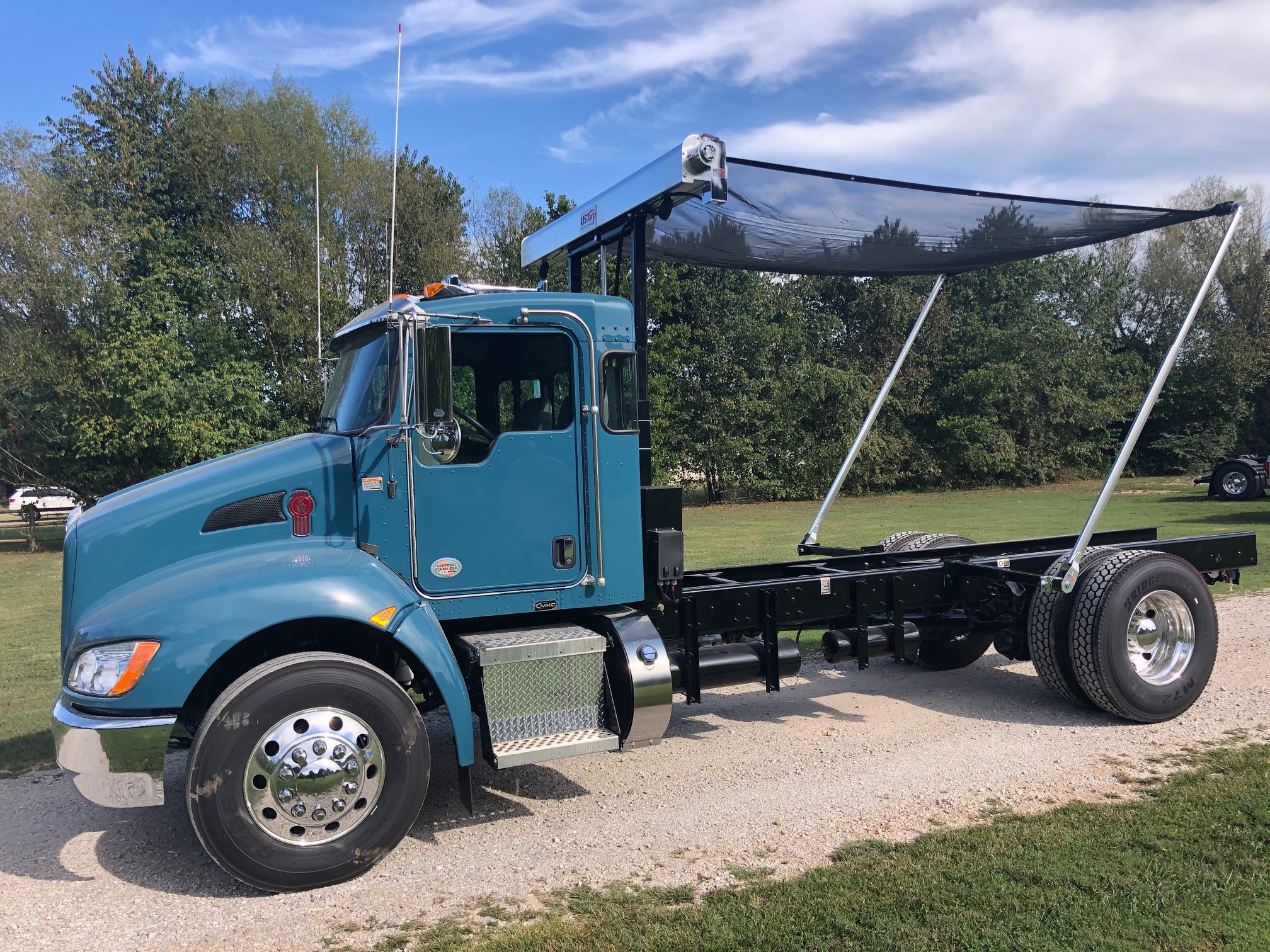

Stationary LT Gantry
Tarp System
The Stationary LT Gantry Tarp System is designed to provide a reliable and efficient gantry solution for Class 3 & 4 trucks, with a narrow profile that allows for simple installation. Our innovative 4” cab-to-hoist clearance removes install limits by allowing the hoist system to be mounted without custom fabrication to the frame. Heavy gauge tubing design minimizes any movement and provides maximum stability for your tarp system. The black powder-coated frame not only adds to the system’s durability but also provides sleek aesthetics. Versatile mounting options allow you to customize the system to fit your specific truck configuration and application. For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
Product Details
16700 – Stationary LT Gantry Tarp System
- Stationary LT Pull Style
- Housing Preassembled with Base Spring Return Axle
- Modular Frame to Fit Various Chassis and Cab Options
16700-AL4 – Stationary LT Aluminum Arm Kit – 4 Spring
- 2-Piece Aluminum 4-Spring Arm Kit with Electric 50:1 Motor
- Housing Pre-Assembled with Axle and Motor
- Waterproof Rocker Switch Included for Out-of-Cab or In-Cab Mounting
- Modular Frame to Fit Various Chassis and Cab Options
- 2-Piece Aluminum 4-Spring Arm Kit with Electric 50:1 Motor
- Housing Pre-Assembled with Axle and Motor
- Waterproof Rocker Switch Included for Out-of-Cab or In-Cab Mounting
- Modular Frame to Fit Various Chassis and Cab Options
| Specifications | Measurement |
|---|---|
| Minimum Cab to Hoist Clearance | 4” – 1” between Gantry Frame and Cab |
| Maximum Assembled Height with Housing | 70” |
| Maximum Cab Height off Frame Rail (with 2” Clearance) | 57” |
| Weight | Without Tarp or Arm Kit | 175 lbs. |
| Maximum Coverage Length | 14ft Container Length |
| Recommended Maximum Coverage Height* 5ft Container Height | |
Tarp Options
Waste Warrior™
Stationary Gantry
Tarp System
Genuine US Tarp Stationary Gantry systems can cover up to a 40-yard container. The Stationary, Powder-Coated Frame stands 77” tall. Semi-Automatic and Electric options available. For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
15101 – Stationary Gantry Unit
- Standard Height 77” Tall Gantry Base
- Spring Return Tarp Axle
- Open Top Aluminum Housing
Available Enhancements
- Gantry Mount Light Kit
Part # 15514 - Upgrade to Wireless Remote
Add –WL Suffix to Part # - Electric 4 Spring Steel Arms, Frame Mounted, Up to 24’
Add -ST4 Suffix to Part
- Electric 4 Spring Aluminum Arms, Frame Mounted, Up to 24’
Add -AL4 Suffix to Part # - Electric 7 Spring Steel Arms, Fender Mounted Up to 26’
Add -ST7 Suffix to Part # - Electric 7 Spring Aluminum Arms, Fender Mounted Up to 26’
Add -AL7 Suffix to Part #
Waste Warrior™
Single Stage Gantry
Tarp System
Genuine US Tarp 1-Stage Gantry systems can cover up to a 40-yard container and is powered by an Electric over Hydraulic power pack. The 1-Stage, Powder-Coated Frame stands 48” tall and can extend an additional 36”. Semi-Automatic, Electric and Hydraulic options are available. For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
15100 – 1-Stage Hydraulic Cylinder Gantry Unit
15100-P – Complete 1 Stage Gantry with Hydraulic Motor, and Premium Aluminum Arms
| 1-Stage Hydraulic Cylinder Gantry Unit | Complete 1 Stage Gantry with Hydraulic Motor, and Premium Aluminum Arms |
|---|---|
|
|
Available Enhancements
- Gantry Mount Light Kit
Part # 15514 - Upgrade to Wireless Remote
Add –WL Suffix to Part # - Electric 4 Spring Steel Arms, Frame Mounted, Up to 24’
Add -ST4 Suffix to Part
- Electric 4 Spring Aluminum Arms, Frame Mounted, Up to 24’
Add -AL4 Suffix to Part # - Electric 7 Spring Steel Arms, Fender Mounted Up to 26’
Add -ST7 Suffix to Part # - Electric 7 Spring Aluminum Arms, Fender Mounted Up to 26’
Add -AL7 Suffix to Part #
Waste Warrior™
Two Stage Gantry
Tarp System
Genuine US Tarp 2-Stage Gantry systems can cover up to a 40-yard container and is powered by an Electric over Hydraulic power pack. The 2-Stage, Powder-Coated Frame stands 64” tall and can extend an additional 88”. Semi-Automatic, Electric and Hydraulic options are available. For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
14126 – 2-Stage Hydraulic Cylinder Telescopic Gantry
- 64” Tall Gantry Base, Extends 88” Vertical
- Spring Return Tarp Axle
- Premium Aluminum Open Top Housing
Available Enhancements
- Gantry Mount Light Kit
Part # 15514 - Upgrade to Wireless Remote
Add –WL Suffix to Part # - Electric 4 Spring Steel Arms, Frame Mounted, Up to 24’
Add -ST4 Suffix to Part
- Electric 4 Spring Aluminum Arms, Frame Mounted, Up to 24’
Add -AL4 Suffix to Part # - Electric 7 Spring Steel Arms, Fender Mounted Up to 26’
Add -ST7 Suffix to Part # - Electric 7 Spring Aluminum Arms, Fender Mounted Up to 26’
Add -AL7 Suffix to Part #
Waste Warrior™
Powered Arm
Tarp System
Fully hydraulic with a 5000psi rating, the Powered Arm ensures smooth and efficient operation, reducing downtime and maximizing productivity. Whether you’re handling scrap metal, construction debris, or waste materials, this system delivers the power and performance you need to get the job done.
The Powered Arm is compatible with all major hook-lift & roll-off manufacturers and utilizes universal replacement parts, making it the ideal choice for businesses with diverse hauling requirements. Installation time is fast and efficient with the standard, fully assembled gantry frame and tarp pre-installed on the roller-bar. For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
18000 – Reinforced, Expandable Black Mesh Tarp – 40400
18001 – Reinforced, Expandable Monster Mesh Tarp – 40420
18002 – Reinforced, Expandable Armor Mesh Tarp – 40410
18003 – No Tarp Included (Custom Tarp Selection)
18004 – Reinforced, Expandable Black Mesh Tarp – 40400
18005 – Reinforced, Expandable Monster Mesh Tarp – 40420
18006 – Reinforced, Expandable Armor Mesh Tarp – 40410
18007 – No Tarp Included (custom tarp selection)
Max Container Size : 24’
36” Adjustable Height Gantry : 60” – 96”
Telescopic Arm Length: 36” Travel
PTO (Power Take Off) Driven: 100%
Tarp Options
Reinforced, Expandable Replacement Tarps
♦ Reinforced, Expandable Black Mesh Tarp for Powered Arm System 40400
♦ Reinforced, Expandable Monster Mesh Tarp for Powered Arm System 40420
♦ Reinforced, Expandable Armor Mesh Tarp for Powered Arm System 40410
Hook Cutout Tarps
♦ Black Mesh Powered Arm Tarp with 16″ x 36″ Cutout 94-28-BM-HOOKLIFT
♦ Monster Mesh Powered Arm Tarp with 16″ x 36″ Cutout 94-28-MM-HOOKLIFT
♦ Armor Mesh Powered Arm Tarp with 16″ x 36″ Cutout 94-28-AM-HOOKLIFT
Premium Belt & Ratchet
For Roll-Off & Hook Lift
The Premium Belt & Ratchet for Roll-Off Applications is the ideal solution for manual tarping in roll-off dumpster applications. Engineered for durability and ease of use, the ergonomic design and intuitive operation simplifies the tarping process, allowing for efficient and hassle free load containment.
For more information or to order for your custom application, please contact your Customer Service Representative or email sales@ustarp.com
Container Length: 10′ to 22’
– Manual Crank-Arm & Retainers
– Roll & Fixed Tubes
– 18oz Vinyl Tarp
– Adj. Steel Bow & Brackets
– Extruded Aluminum Tarp Stops
– Ratchet & Straps
Galvanized Steel Bows | Economical & Durable For All Loading Methods
Low Rise – Container Widths : 93” to 102” – 1100760
High Rise – Container Widths : 89” To 95” – 1117905
Flex Bow Kits | Flexible Nylon For Heavy Equipment Top Loading
1-3/8” Diameter / 97” Length w Steel Brackets – 1123544
Tarp Stops
Cast Aluminum – 100834-Cast
Rubber Tarp Stop – 1115216
| Container Length | Part No. |
|---|---|
| 10’ | BR10BV-RO |
| 11’ | BR11BV-RO |
| 12’ | BR12BV-RO |
| 13’ | BR13BV-RO |
| 14’ | BR14BV-RO |
| 15’ | BR15BV-RO |
| 16’ | BR16BV-RO |
| 17’ | BR17BV-RO |
| 18’ | BR18BV-RO |
| 19’ | BR19BV-RO |
| 20’ | BR20BV-RO |
| 21’ | BR21BV-RO |
| 22’ | BR22BV-RO |
Tarp Options

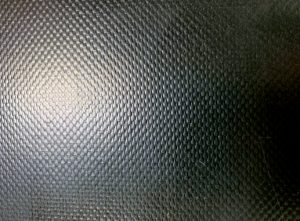

18oz Black Vinyl
22oz Black Vinyl
Armor Mesh
